Features

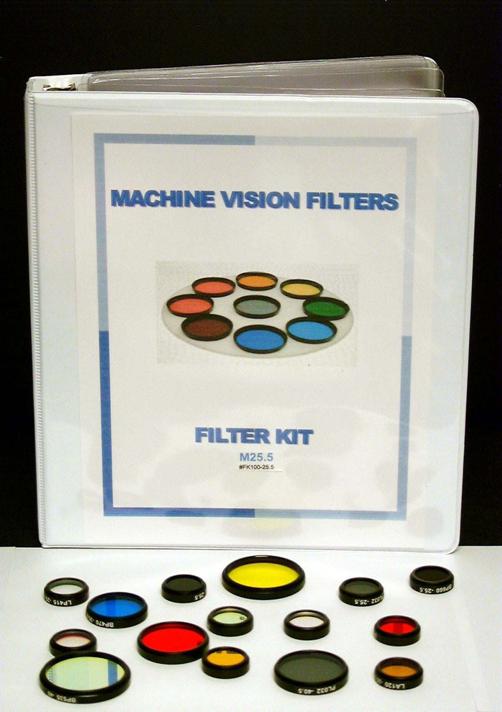

· A selection of up to 10 different filter types.
· Double-pocketed transparent vinyl pages, each holding one filter, corresponding transmission curve and table of data points describing each filter.
· Protective three ring binder.
Midwest Filters
These filters are for use with monochromatic or white LED lighting, fiber optic illumination, structured diode-generated light patterns, and other lighting commonly used in machine vision applications. When matched together with the correct lighting, filtering is one of the most important factors that controls the ability of any vision system to improve image quality and produce the best results. Selecting the right filter for the job is therefore critical.
Midwest stocks a wide variety of filter options designed to securely and quickly mount to the smaller diameter lenses used by CCD and CMOS cameras. Unlike most filters sold for machine vision use, Midwest filters are fully assembled and ready to use. The filter material is engineered and sized to each mount for maximum field of view.
Coatings used:
· Are extremely durable.
· Are non-hydroscopic.
· Withstand repeated cleaning with solvents, high heat, humidity, and vibration.
· Have an almost unlimited lifespan.
| Item # | Thread Size (mm) | Outer Ømm | Clear Aperture Ømm |
| UV Fluorescence |
| UK100-25.5 | M25.5 x 0.5 | 27.5 | 21 |
| UK100-27 | M27.0 x 0.5 | 29 | 22.5 |
| UK100-30.5 | M30.5 x 0.5 | 32.5 | 26.5 |
| UK100-34 | M34.0 x 0.5 | 36 | 30 |
| UK100-35.5 | M35.5 x 0.5 | 37 | 31.5 |
| UK100-37 | M37.0 x .75 | 39 | 32 |
| UK100-37.5 | M37.5 x 0.5 | 39.5 | 32 |
| UK100-40.5 | M40.5 x 0.5 | 42 | 36.5 |
| UK100-43 | M43.0 x .75 | 45 | 38.5 |
| UK100-46 | M46.0 x .75 | 48.5 | 41 |
| UK100-49 | M49.0 x .75 | 51.5 | 44 |
| UK100-52 | M52.0 x .75 | 54 | 47 |
| UK100-55 | M55.0 x .75 | 57 | 60 |
| UK100-58 | M58.0 x .75 | 60 | 53 |
| UK100-62 | M62.0 x .75 | 62 | 57.5 |
| UK100-22.5 | M22.5 x 0.5 | 24.5 | 19.5 |
