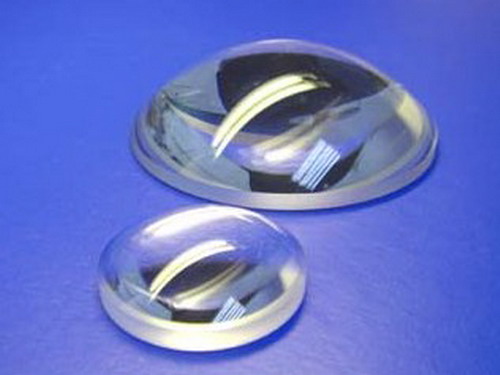

Plano-Convex lens can be used in a wide-range of applications. With their postive focal lengths, they are a low-cost and effective method of collimating and converging light, and are extremely useful for projects involving imaging. Typical areas of usage are in eyepieces, magnifiers, etc.
Specifications
Diameter | Surface Quality | Diameter Tolerance
| Center Thickness Tolerance
| Edge Thickness Tolerance | Centering Tolerance
|
| | | | | |
3.00 - 5.00 | 40-20 | +0/-0.05 | +/-0.2 | Reference | 3-5arc mins |
5.01 - 25.40 | 40-20 | +0/-0.1 | +/-0.2 | Reference | 3-5arc mins |
25.41 - 40.00 | 60-40 | +0/-0.1 | +/-0.2 | Reference | 3-5arc mins |
40.01 - 75.00 | 80-50 | +0/-0.1 | +/-0.2 | Reference | 3-5arc mins |
