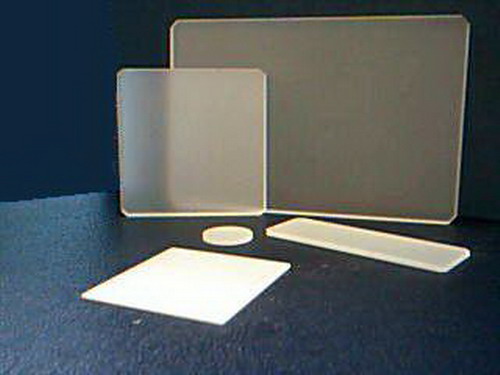

Our proprietary prepared, well diffused surface provides a good imaging plane. Direct ambient and/or interference light is blocked to produced even, diffused illumination.
Specifications
| Material | Float Glass |
| Dimensional Tolerance | +/-0.15 |
| Thickness Tolerance | +/-0.2 |
| Surface Quality | 80/50 Scratch/Dig |
| Coating | None |
Products
| P/n | Size
(mm) | Size Tol.
(mm) | Thickness
(mm) | Thickness Tol.
(mm) | |
| 24045 | Dia. 10 | | 1 | | |
| 24046 | Dia. 12.7 | | 1 | | |
| 24047 | Dia. 15 | | 1 | | |
| 24048 | Dia. 20 | | 1 | | |
| 24049 | Dia. 25 | | 1 | | |
| 24050 | 25 X 25 | | 1 | | |
| 24051 | Dia. 30 | | 1 | | |
| 24052 | Dia. 35 | | 1 | | |
| 24053 | Dia. 50 | | 1 | | |
| 24054 | 50 X 50 | | 1 | | |
| 24055 | 75 X 75 | | 1 | | |
| 24056 | Dia. 100 | | 1 | | |
| 24057 | 100 X 100 | | 1 | | |
| 24058 | 125 X 125 | | 1 | | |
| 24059 | 150 X 150 | | 1 | | |
