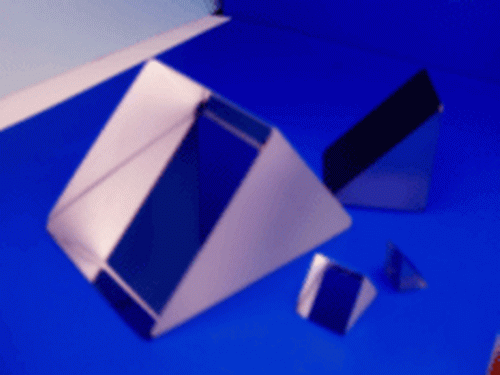

光学玻璃: 直角镜面圆点阵白底目标棱镜(Right Angle Mirror Prisms)

Right angle prisms are generally used to achieve a 90° light path bend, redirecting light and rotating images. Images are inverted, but correct left-to-right. These are commonly used in optical systems such as telescopes and periscopes.

Specifications

Material	BK7
Dimensional Tolerance	+0/-0.1mm
Angle Tolerance	±15 arc seconds
Bevel	0.3mm x 45°
Hypotenuse	Aluminized, with black paint protection

Products

P/n	Size (mm)	Coating on legs	Hypo	Note
30118-14	6.25	MgF2	Alum.	w/ black paint
30118-2	10	MgF2	Alum.	w/ black paint
30118-1	15	MgF2	Alum.	w/ black paint
30118-12	25	MgF2	Alum.	w/ black paint
30118-3	25.4	MgF2	Alum.	w/ black paint
30118-8	30	MgF2	Alum.	w/ black paint
30118-9	35	MgF2	Alum.	w/ black paint
30118-6	40	MgF2	Alum.	w/ black paint
30118-10	57	MgF2	Alum.	w/ black paint
